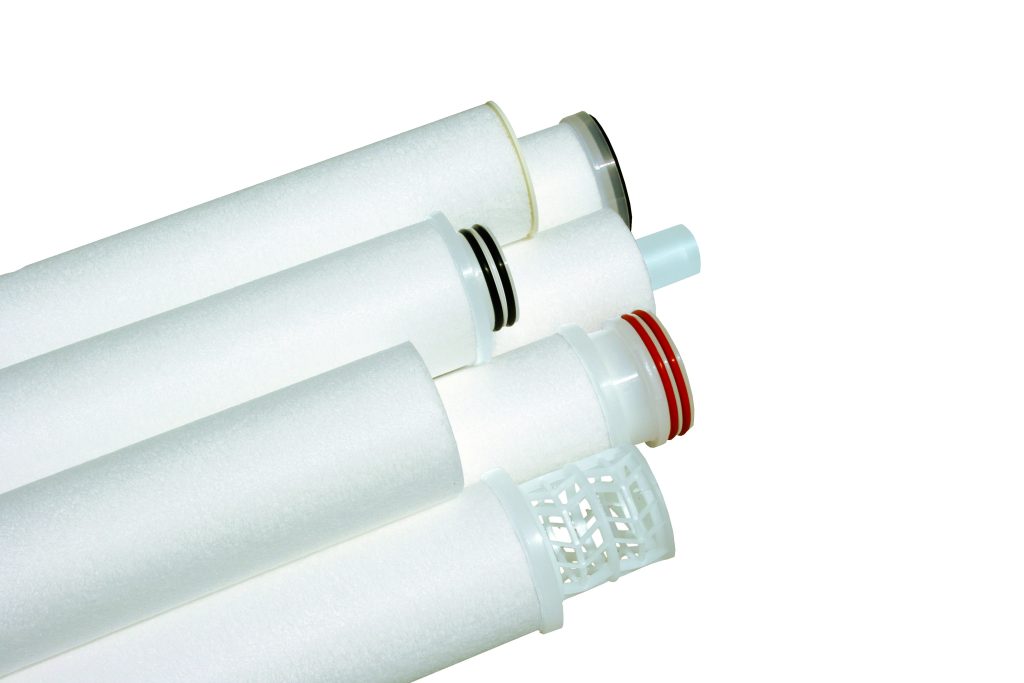

Filterelement CMBF

Melt Blown Filters

An economical, disposable, filter element that can be used in a wide range of applications. The Crystal MBF depth filter is constructed of 100% polypropylene media for chemical compatibility with a variety of process fluids. The unique Crystal Core prevents collapse even at elevated temperatures.

Features–Benefits

• Available in nominal ratings from 1 to 75 microns

• Formed Crystal Core for excellent collapse strength

• Graded pore construction for long on-stream life

• Melt blown media resists dirt unloading as differential

   pressure increases

• Non-shedding

• High dirt holding capacity

• Economical depth filtration

• Thermal bonded endcaps optional

• Free of binders, adhesives and surfactants

• Highly consistent performance

Product Specifications

Media: Polypropylene

End caps/Center core: Polypropylene

Gaskets/O-Rings: Silicone, EPDM, Buna N, Santoprene,

Viton, Teflon encapsulated Viton (O-Rings only)

Micron ratings: 1, 3, 5, 10, 20, 30, 50, 75 μm

Dimensions

Nominal lengths: 9.75″, 10″, 20″, 30″, 40″, 50″

                              (24.8, 25.4, 50.8, 76.2, 101.6, 127 cm)

                              Other lengths available

Outside diameter: 2.5″ (6.35 cm), 2.63″ (6.7 cm)                               Endcapped

Inside diameter: 1.1″ (2.79 cm)

Operating Parameters

Maximum differential pressure:

65 psid @ 68°F (4.5 bar @ 20°C)

50 psid @ 100°F (3.4 bar @ 38°C)

25 psid @ 170°F (1.7 bar @ 77°C)

Recommended changeout

differential pressure: 35 psid (2.4 bar)

*NSF61 applies to NN, P6 and PX styles only.
